UnitsPhase MOSAIC

The representation of dimensional quantities is changed using the Units menu item or the units button button. Changes to units will update in all open views of the surface or image.

surfacesImages

LE Required

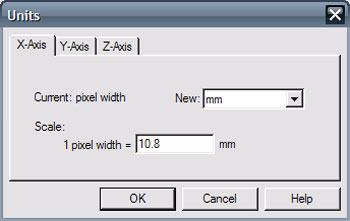

Units Dialog

units dialog

The units dialog allows new units to be specified for any or all of the coordinate system axes. Select the new unit with the list box. If "custom" is selected, a user-defined unit label and scale factor can be entered.
